Products & capabilities
Machined lift components, with the specs to prove it.
Everything here is turned, grooved and balanced in-house and made to your drawing or sample. Sizes and options are indicative ranges — send your requirement for an exact quote.
- Groove pitch cut to your rope spec
- Bore + keyway to your shaft drawing
- Bush / bearing housing on request

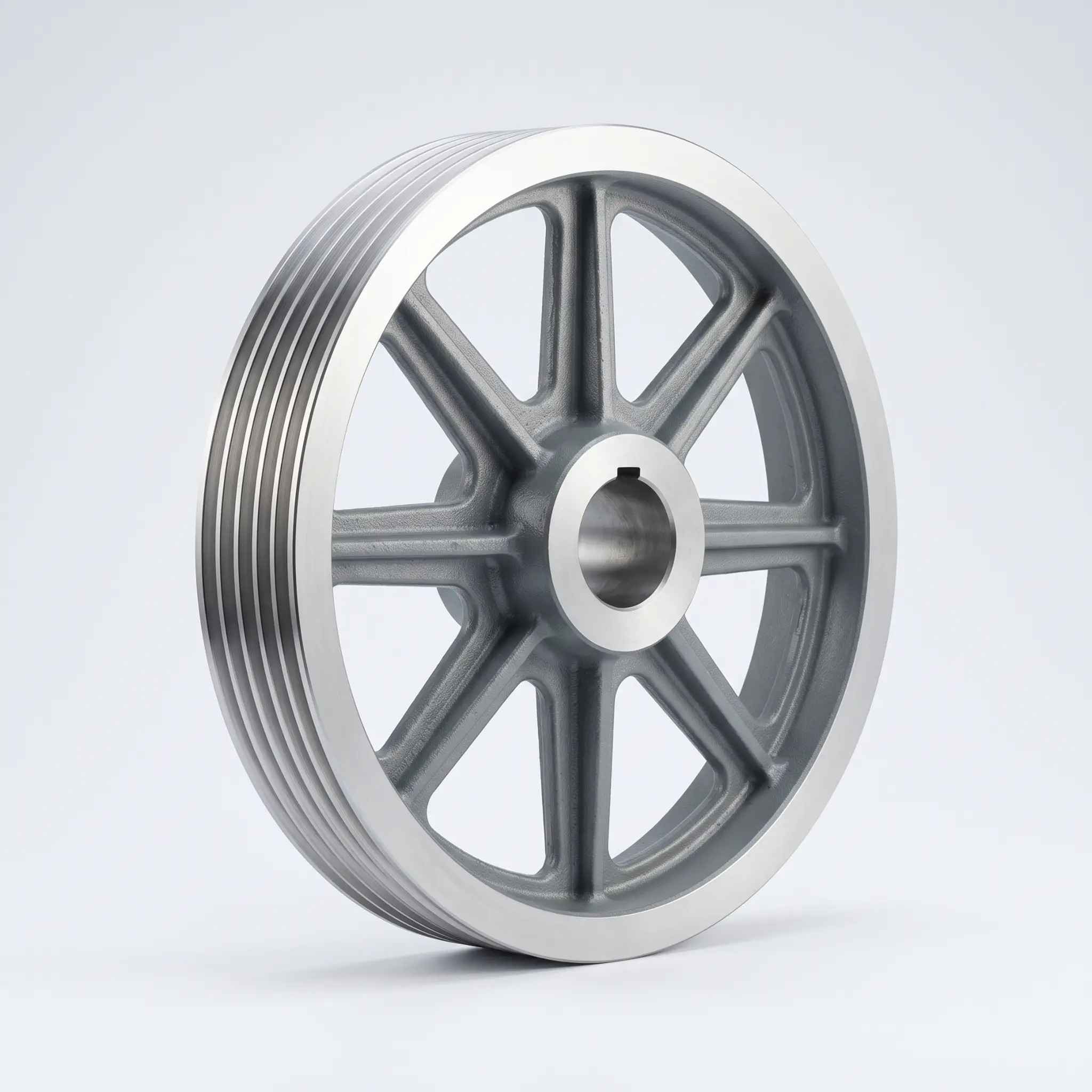

01 — Deflector / idler sheaves that route the rope with a true running face.
Diverter Sheaves
Precision-turned diverter (deflector) sheaves for machine-room and machine-room-less lifts. Concentric grooves cut to your rope pitch, statically balanced, and bored to your shaft for quiet, low-wear rope travel.
| Material | Cast iron FG260 · EN8 on request |
|---|---|
| Outer diameter | 240 – 640 mm |
| Groove profile | Semicircular (U) with undercut |
| No. of grooves | 3 – 8 |
| Rope diameter | 8 · 10 · 13 mm |
| Bore | 30 – 80 mm, H7 |
| Hardness | 180 – 220 BHN |
| Balancing | Static |
| Finish | Machined + primer/enamel |
- Groove angle + undercut to traction requirement
- Reverse-engineered from your worn sheave
- Matched to specific machine models

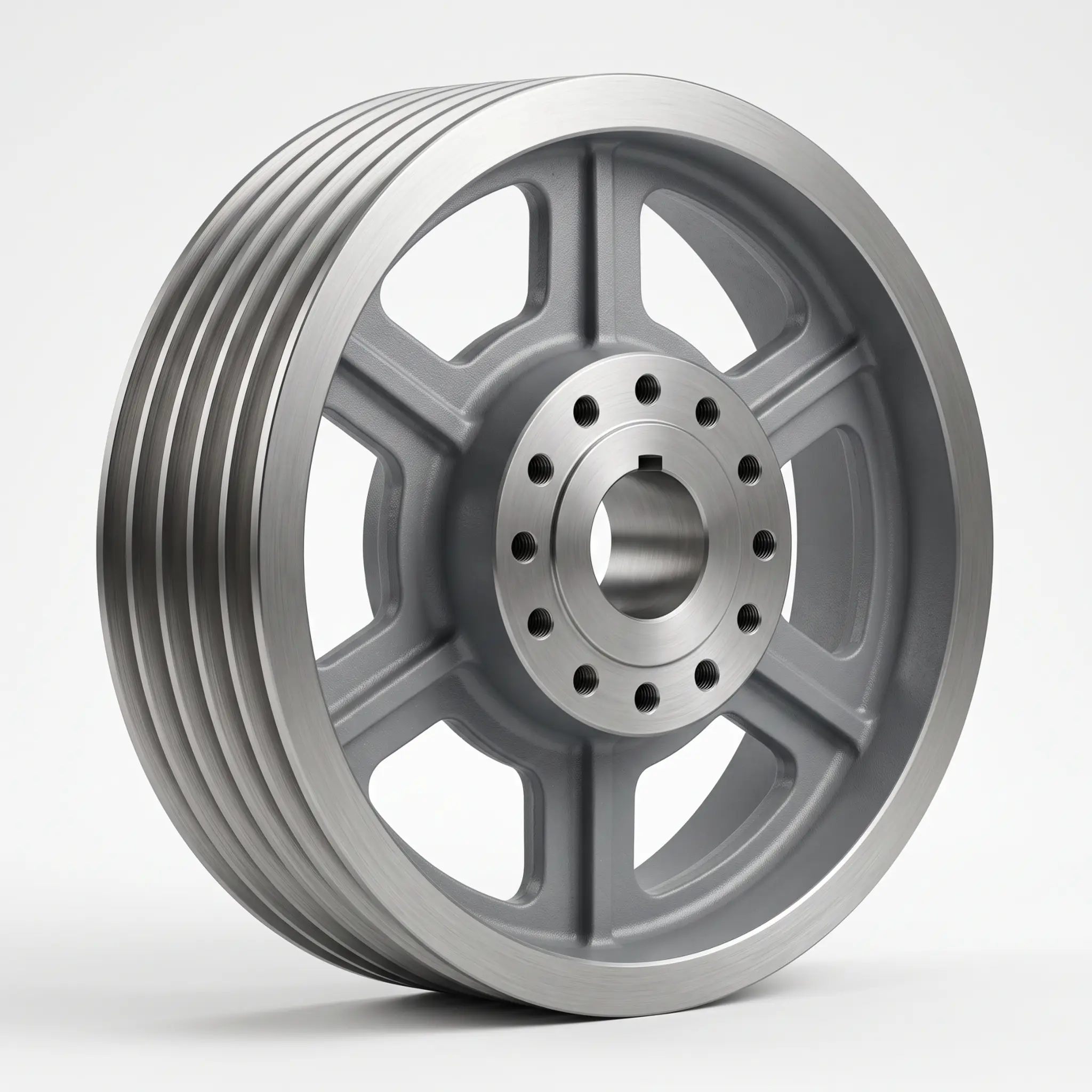

02 — Drive sheaves with hardened, profile-ground grooves for traction and grip.
Main & Traction Sheaves
Traction (drive) sheaves machined for the geared or gearless machine. Undercut-U or V grooves cut for correct traction and even rope loading, with the groove faces hardened for service life. Made to sample or drawing.
| Material | Ductile iron SG500 · cast steel on request |
|---|---|
| Outer diameter | 320 – 800 mm |
| Groove profile | Undercut-U · V (35° / 40°) |
| No. of grooves | 3 – 8 |
| Rope diameter | 8 · 10 · 13 mm |
| Bore / mount | To machine shaft — taper or keyed |
| Groove hardness | Induction-hardened faces |
| Runout | ≤ 0.10 mm TIR |
| Finish | Machined + primer/enamel |
- Bare wheel or bearing-fitted assembly
- Bracket / axle to your pit drawing
- Single or twin-groove

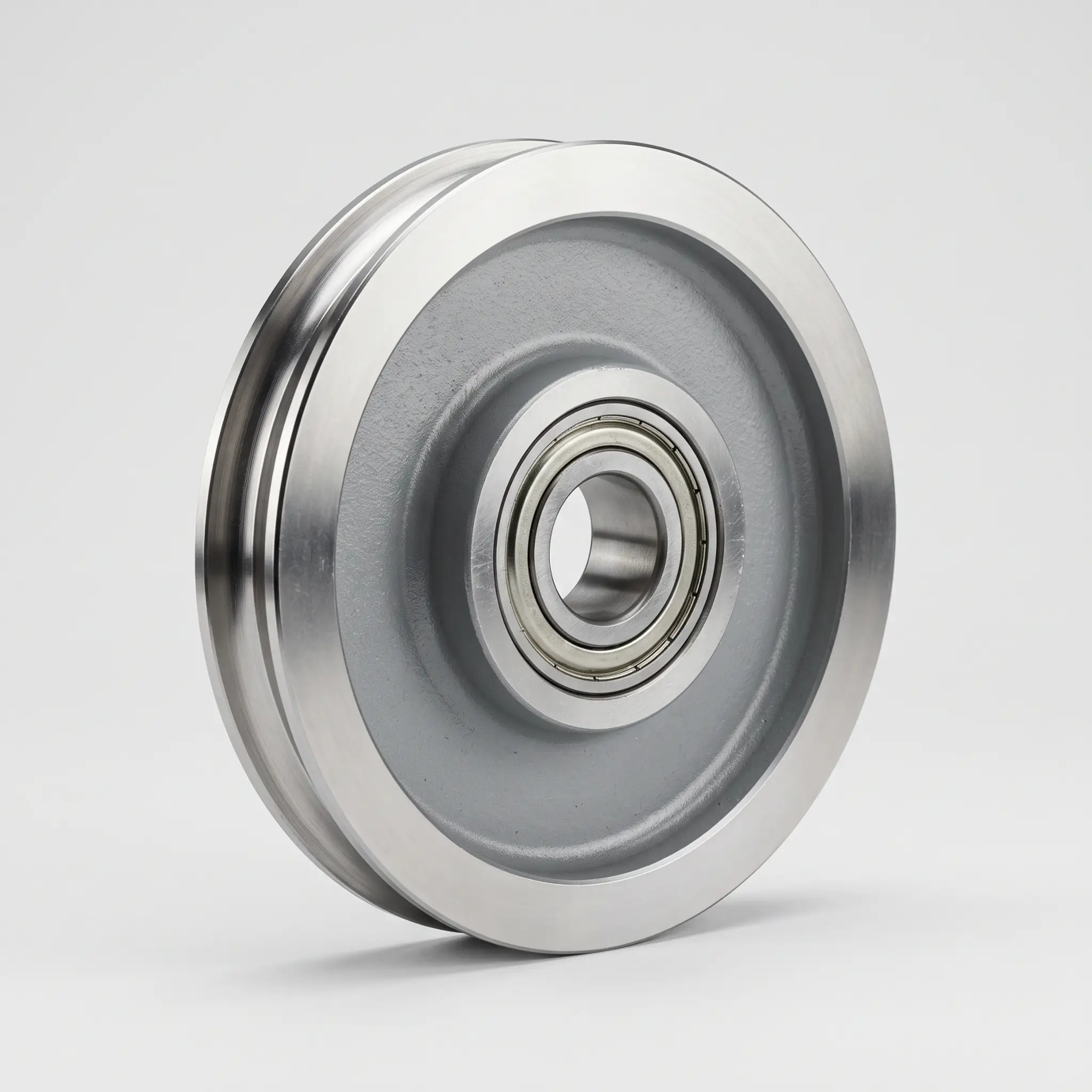

03 — Compensating, governor and deflector pulleys with sealed bearings.
Lift Pulleys
Compensating, overspeed-governor and deflection pulleys turned to run true. Supplied bare or fitted with sealed bearings and housing so the assembly drops straight into the pit or car frame.
| Material | Cast iron · EN8 |
|---|---|
| Outer diameter | 100 – 400 mm |
| Groove profile | Round seat, single/multi |
| Rope / cable | 6 – 13 mm |
| Bore | Sealed bearing housing (6204–6208) |
| Balancing | Static |
| Finish | Machined + primer/enamel |
- Manufacture to your drawing (PDF/DWG)
- Reverse-engineer from a physical sample
- Prototype then repeat batches

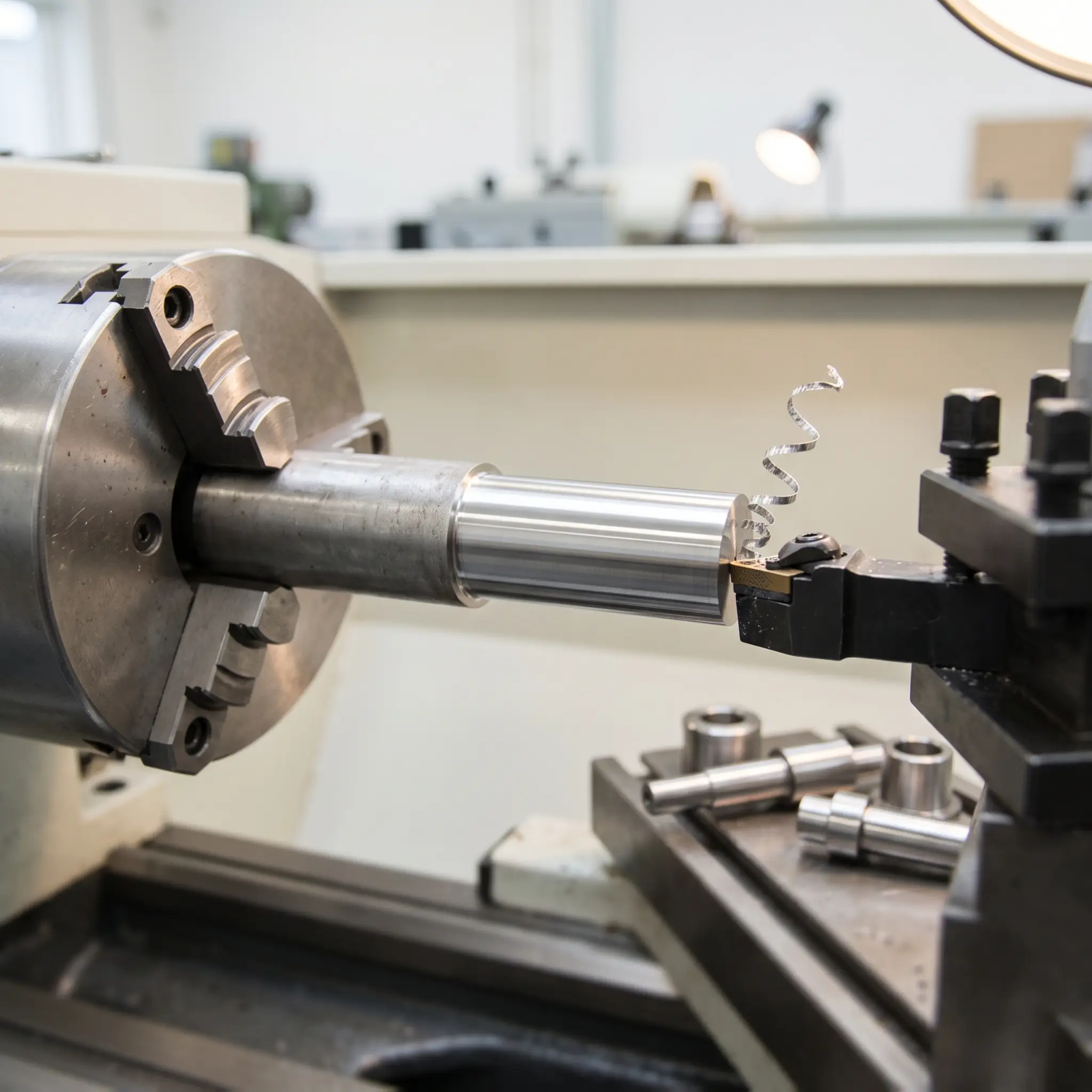

04 — General turning, boring and profiling — bring a drawing or a sample.
Custom Lathe & Machining
Beyond sheaves, our lathes take on general precision turning for the lift and engineering trade — shafts, bushes, flanges, spacers and one-off components. Send a drawing or a physical sample and we machine to it.
| Turning diameter | Up to Ø 800 mm |
|---|---|
| Turning length | Up to 1500 mm |
| Materials | MS · EN8 · EN9 · cast iron · SS · bronze · aluminium |
| Operations | Turning · boring · facing · threading · drilling · keyway |
| Tolerance | Up to ±0.02 mm |
| Batch | One-off to small batch |
Have a drawing or a sample? Let’s machine it.
Send your spec and we’ll come back with a quote and a realistic lead time — no obligation.
